What are the Advantages of Restrained Flange Couplers?

What is a Restrained Flange Coupler?

A restrained flange adaptor is a type of pipe connector that joins a flanged pipe to a plain end pipe. Here are some things to know about restrained flange adaptors:

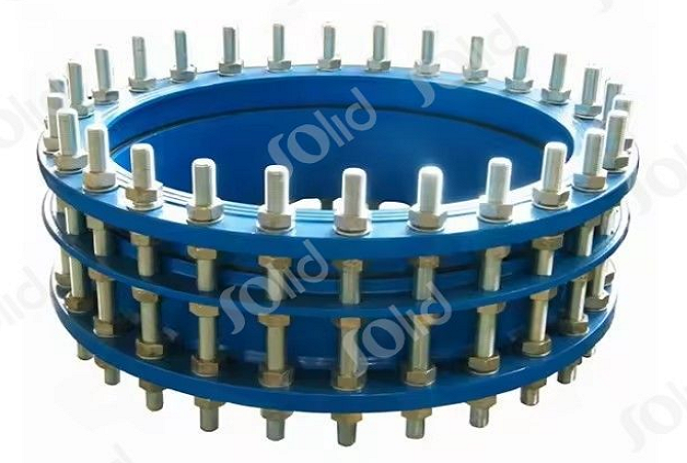

A restrained flange coupler is a specialized type of flange that provides a secure, leak-proof connection between two pipes or pipe sections. Unlike standard flange couplers, which rely on bolted connections alone, restrained flange couplers include additional mechanisms such as locking devices or sleeves that hold the pipes firmly in place, preventing movement under high pressure.

Purpose

Restrained flange adaptors are used to connect pipes of different materials or to connect a flanged pipe to a plain end pipe.

Features

They have bolts on one end that attach to the flanged pipe and bolts on the other end that lock around the outside of the plain end pipe. They also allow for some movement to compensate for small alignment errors.

1. Enhanced Strength and Durability

One of the biggest advantages of restrained flange couplers is their ability to withstand extreme pressures without compromising the integrity of the piping system. This enhanced strength ensures that the system can handle the forces exerted by fluids, gases, and other materials being transported through the pipes.

Why is This Important?

High-pressure environments, such as those found in water distribution systems or chemical plants, demand couplers that can maintain their integrity over time. A restrained flange coupler’s added strength ensures it performs reliably, even in challenging conditions.

2. Leak-Proof Connections

The primary function of any coupler is to provide a secure and leak-free connection. Restrained flange couplers excel in this regard due to their design. The restraining mechanism ensures that the coupler does not slip or separate under pressure, reducing the risk of leaks.

How Does This Benefit the System?

Leaking pipes can lead to significant water wastage, safety hazards, and costly repairs. By preventing leaks, restrained flange couplers help maintain the efficiency of the system while minimizing the chances of contamination or damage.

3. Easy Installation and Maintenance

Despite their robust performance, restrained flange couplers are relatively easy to install and maintain. They do not require specialized tools or complex procedures, making them a convenient option for both new installations and repairs.

Installation Made Simple

The simplicity of installation helps save time and reduce labor costs, making restrained flange couplers an economically viable solution. Moreover, regular maintenance is also streamlined, which helps extend the lifespan of the piping system.

4. Versatility in Applications

Restrained flange couplers are suitable for a wide range of applications, from water treatment plants to oil refineries. They can be used for connecting various types of pipes, including steel, PVC, and ductile iron, making them a versatile solution for different industries.

Adaptability to Different Environments

Whether you are dealing with high-pressure systems in industrial plants or medium-pressure applications in municipal water systems, restrained flange couplers provide the flexibility to meet specific needs.

5. Prevention of Pipe Movement

Pipe movement can lead to alignment issues, pipe stress, and potential damage to the overall system. Restrained flange couplers prevent this by locking the pipes in place, ensuring that they stay aligned even under high-pressure conditions.

Maintaining Structural Integrity

By preventing movement, these couplers help avoid misalignment, which could lead to stress points in the pipe and cause costly damage or failure. This is particularly beneficial in systems subject to thermal expansion or shifting ground conditions.

6. Cost-Effective Long-Term Solution

Although restrained flange couplers may have a higher initial cost than standard couplers, their ability to prevent leaks, reduce maintenance needs, and withstand high pressures makes them a cost-effective solution over the long term.

Investing in Reliability

The durability and reliability of restrained flange couplers mean fewer repairs, fewer replacements, and less downtime, ultimately saving money in the long run. This makes them a smart investment for both large-scale industrial projects and residential systems.

7. Improved Safety

Safety is a top priority in any industrial or residential piping system, and restrained flange couplers enhance safety by providing stronger, more secure connections that are less likely to fail under pressure. This reduces the risk of accidents and hazardous leaks.

Protecting People and Equipment

In environments where hazardous materials are being transported, the risk of leaks or explosions is a significant concern. Restrained flange couplers help mitigate this risk by ensuring secure and stable connections.

Conclusion

Restrained flange couplers offer numerous advantages that make them a preferred choice in industrial piping systems. Their enhanced strength, ability to prevent leaks, ease of installation, and long-term cost-effectiveness ensure that they play a crucial role in maintaining the efficiency and safety of piping systems. Whether you're installing a new system or upgrading an existing one, restrained flange couplers provide the reliability and performance needed to ensure smooth and secure operation.

FAQs

1. What is the difference between restrained and non-restrained flange couplers?

Restrained flange couplers include additional locking mechanisms that prevent movement under pressure, while non-restrained couplers rely solely on bolted connections.

2. Can restrained flange couplers be used for both low and high-pressure systems?

Yes, they are suitable for both low and high-pressure systems, making them versatile for various applications.

3. Are restrained flange couplers more expensive than standard couplers?

They tend to have a higher upfront cost, but their durability and reliability make them more cost-effective over time.

4. How do restrained flange couplers prevent leaks?

The restraining mechanism holds the pipe securely in place, preventing separation and ensuring a leak-free connection.

5. Are restrained flange couplers easy to maintain?

Yes, they are designed for easy installation and minimal maintenance, reducing overall system downtime.
