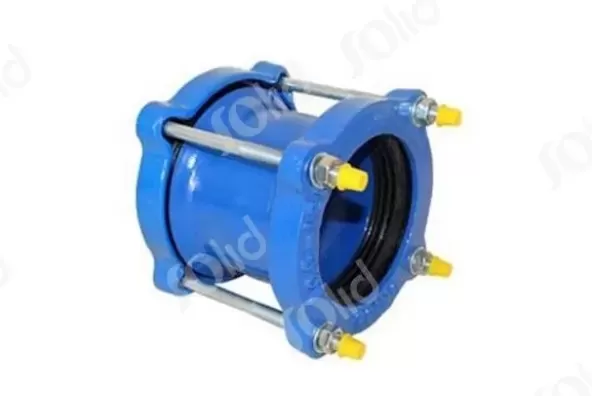

Introduction to Ductile Iron Couplings

Ductile iron couplings are crucial components in modern piping systems. Often used in industries where strength, durability, and resistance to corrosion are essential, these couplings are an integral part of connecting pipes for various applications. Whether it's in the water distribution systems or construction projects, ductile iron couplings are known for their exceptional performance and longevity. Let's dive into what makes these couplings stand out and why they are chosen for tough tasks.

What is Ductile Iron?

Ductile iron, also known as nodular cast iron, is a type of cast iron that contains small amounts of graphite in spherical or nodular form. This structure gives ductile iron enhanced strength, ductility, and impact resistance compared to traditional cast iron. It's made by adding small amounts of magnesium to the molten iron, transforming the graphite flakes into nodules. This results in a material that combines the advantages of cast iron with improved flexibility and resilience—making it ideal for heavy-duty applications like couplings.

Applications of Ductile Iron Couplings

Ductile iron couplings are widely used across various industries. In the water and wastewater industry, these couplings are essential for ensuring leak-proof connections between pipes that handle high-pressure fluid. Oil and gas pipelines also rely on ductile iron couplings due to their ability to withstand extreme pressure and corrosion, ensuring the safe transfer of crude oil and natural gas. Additionally, construction and infrastructure projects use these couplings to link pipelines in both residential and commercial settings.

Types of Ductile Iron Couplings

Ductile iron couplings come in several types, each designed for specific needs:

- Flanged Ductile Iron Couplings: These are used when a permanent connection is required. The flanged edges allow for secure bolt fastening between two pipes.

- Sleeve Ductile Iron Couplings: These offer a more flexible solution for joining pipes, particularly when some movement or alignment correction is needed.

- Compression Ductile Iron Couplings: Known for their easy installation, these couplings are ideal for applications where minimal tools are available.

Benefits of Ductile Iron Couplings

The popularity of ductile iron couplings stems from the many benefits they offer:

- Durability and Strength: Ductile iron is incredibly strong, able to withstand high levels of pressure, vibration, and shock without cracking or breaking.

- Corrosion Resistance: Ductile iron has a natural resistance to rust and corrosion, making it perfect for outdoor and underground applications where pipes are exposed to harsh environmental conditions.

- Cost-Effectiveness: While more expensive than traditional cast iron, ductile iron offers superior performance and longer service life, providing excellent value over time.

- Versatility: From residential plumbing to large-scale industrial projects, ductile iron couplings can handle a variety of pipe sizes and materials, making them versatile for many industries.

How Ductile Iron Couplings Work

Ductile iron couplings are designed to create a strong, reliable connection between two pipes. The couplings come in different configurations based on the type of connection needed. Installation typically involves sliding the coupling over the ends of two pipes, aligning them properly, and then securing the coupling. These couplings are often secured with bolts or screws, ensuring a tight, leak-free seal. Regular maintenance includes checking for any signs of wear, corrosion, or alignment issues to ensure their continued performance.

Why Choose Ductile Iron for Couplings?

Why is ductile iron so popular for couplings? The material's unique properties make it a top choice for critical applications. It offers high tensile strength and the ability to flex under pressure without breaking. This flexibility allows it to absorb shock and vibrations without cracking, which is essential in dynamic environments like industrial settings. Furthermore, ductile iron's ability to withstand extreme weather and environmental conditions ensures that the couplings will last for years, even in harsh climates.

Factors to Consider When Choosing Ductile Iron Couplings

When selecting ductile iron couplings, there are several factors to consider:

- Size and Diameter: Ensure the coupling matches the diameter of the pipes being joined.

- Pressure Rating: Check the pressure ratings of the coupling to ensure it can handle the system's operational pressure.

- Environmental Conditions: If the coupling will be exposed to chemicals, heat, or extreme weather, make sure it is designed to withstand these factors.

Common Challenges and Solutions in Ductile Iron Coupling Use

While ductile iron couplings are durable, they are not without challenges:

- Risk of Corrosion: Despite their corrosion resistance, ductile iron couplings can still rust if exposed to certain chemicals or moisture over time. Protective coatings or regular maintenance can mitigate this risk.

- Installation Issues: Improper installation can lead to leaks or misalignment. Following proper installation procedures and using the right tools can prevent these problems.

- Wear and Tear: Over time, couplings may experience wear, especially in high-traffic areas. Periodic inspections can help identify any issues before they lead to failure.

Ductile Iron Couplings vs. Other Materials

When compared to steel or cast iron, ductile iron couplings outperform in several areas:

- Steel: While steel is strong, ductile iron is better suited for resistance to cracking and fatigue.

- Cast Iron: Unlike cast iron, ductile iron is more flexible and can absorb more shock, making it the preferred material for pipe couplings.

Quality Control and Standards for Ductile Iron Couplings

To ensure the couplings meet high standards of performance, they must comply with various manufacturing guidelines. Look for certifications such as ISO 9001, which indicates that the product has undergone rigorous testing and quality control processes. Manufacturers should also adhere to ASTM standards for ductile iron products.

Global Market Trends for Ductile Iron Couplings

As global infrastructure projects expand, the demand for ductile iron couplings continues to grow. Markets in regions like North America, Europe, and Asia are investing heavily in upgrading their water, gas, and oil pipeline systems. In particular, countries in developing regions are seeing significant growth in ductile iron coupling demand due to urbanization and industrialization.

How to Ensure Proper Installation of Ductile Iron Couplings

To ensure a secure and reliable connection, follow these steps for installation:

1. Ensure the pipes are properly cleaned and aligned.

2. Slide the coupling over the pipe ends and secure with bolts.

3. Tighten all fasteners to the recommended torque specifications.

4. Test the installation by pressurizing the system and checking for leaks.

Conclusion

Ductile iron couplings are a versatile, durable, and cost-effective solution for pipe connections in numerous industries. Whether you're working on a construction project or an oil pipeline, the reliability and strength of ductile iron ensure a secure and long-lasting connection. With advancements in technology and growing demand, ductile iron couplings will continue to play a vital role in modern infrastructure.

FAQs

1. What are the main advantages of ductile iron couplings over other types?

Ductile iron couplings offer superior strength, corrosion resistance, and flexibility compared to other materials, making them ideal for demanding applications.

2. Are ductile iron couplings easy to install?

Yes, ductile iron couplings are relatively easy to install with the proper tools and guidance. They can be installed using basic piping equipment.

3. How long do ductile iron couplings last?

With proper maintenance, ductile iron couplings can last for many years, offering exceptional longevity and reliability.

4. Can ductile iron couplings be used for high-pressure systems?

Yes, ductile iron couplings are designed to withstand high-pressure systems, making them suitable for various industries such as oil and gas.

5. What is the difference between flanged and sleeve ductile iron couplings?

Flanged couplings are permanent connections with bolted flanges, while sleeve couplings offer more flexibility for temporary or adjustable pipe connections.
