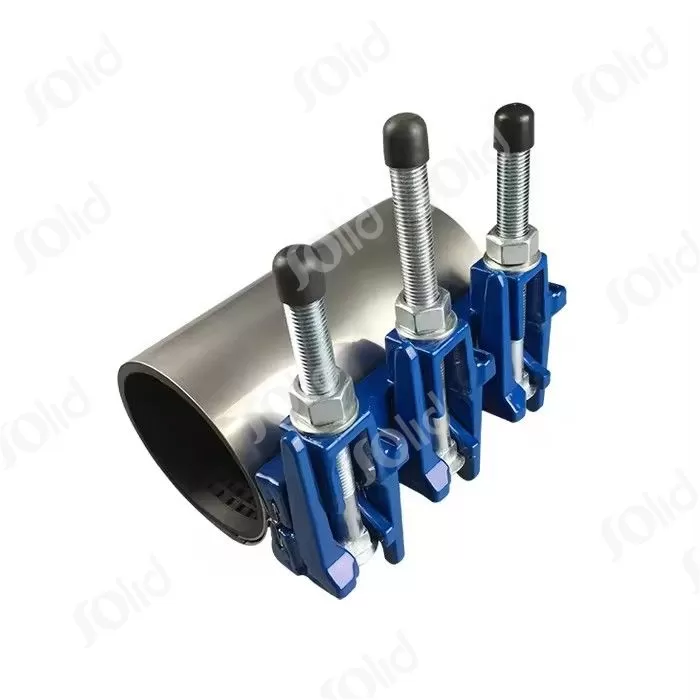

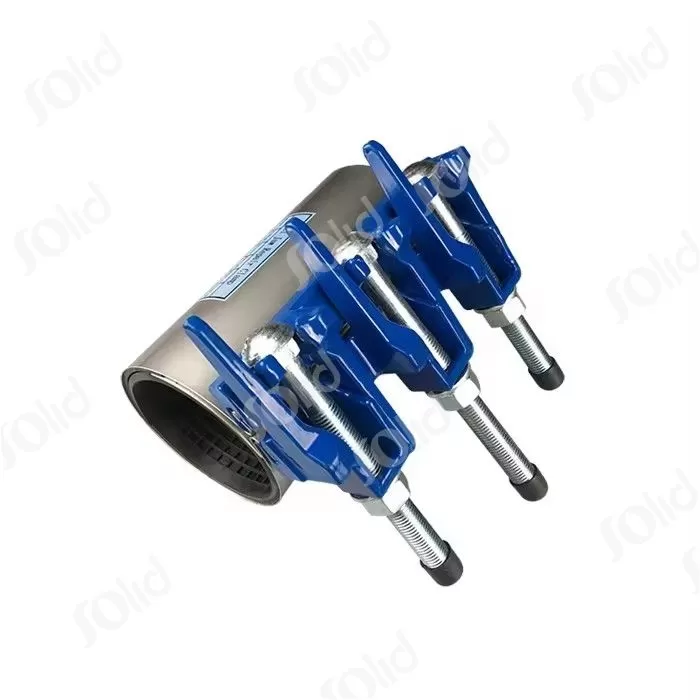

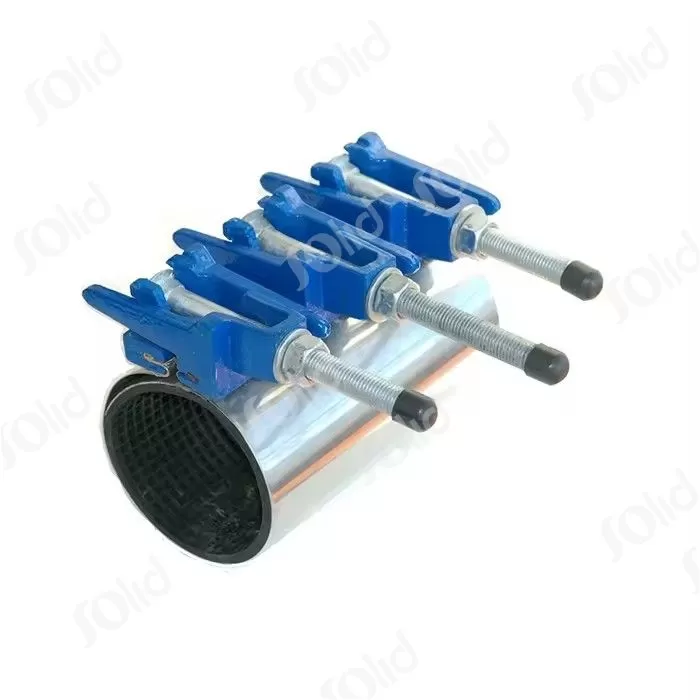

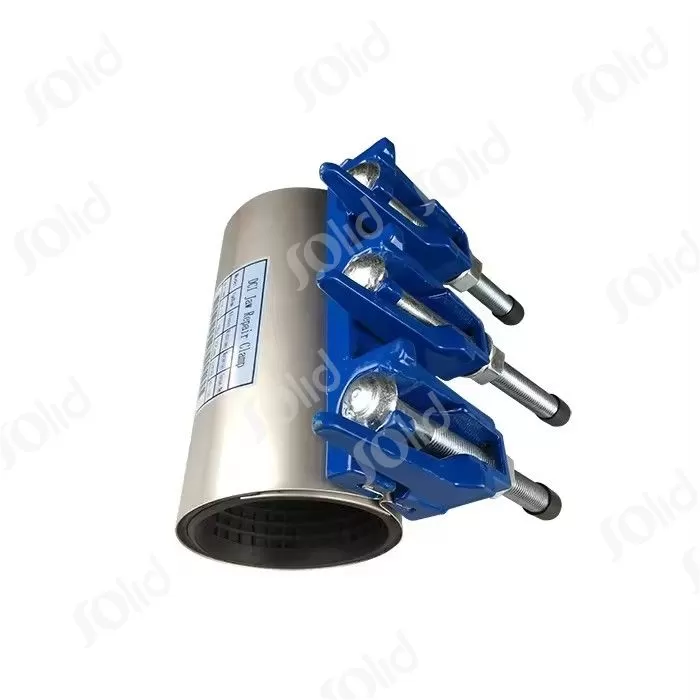

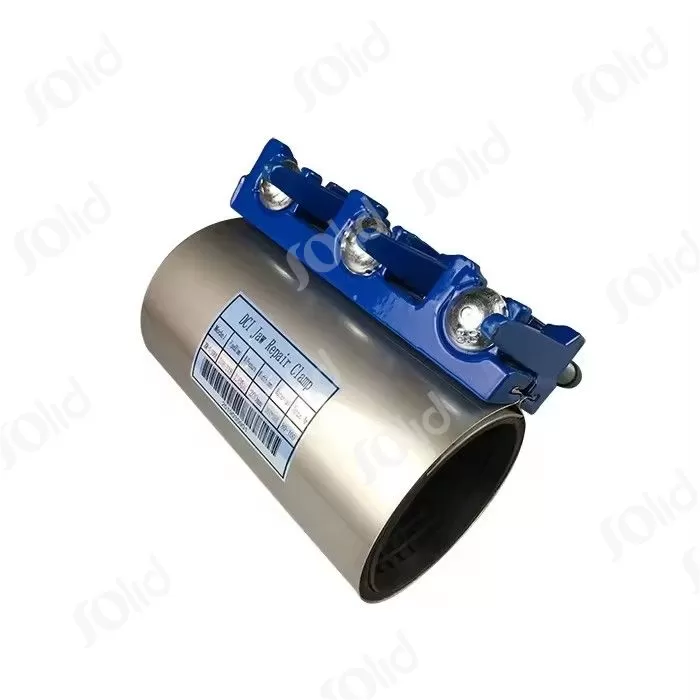

Repair Clamp with DI Lug

Model Number:

Our Repair Clamp with DI Lug is the perfect solution for repairing leaks on pipes made of ductile iron. This product is designed to provide a fast, easy, and cost-effective way to repair damaged pipes and fittings without the need for extensive excavation work or disconnection of the pipeline...

Products Description

Our Repair Clamp with DI Lug is the perfect solution for repairing leaks on pipes made of ductile iron. This product is designed to provide a fast, easy, and cost-effective way to repair damaged pipes and fittings without the need for extensive excavation work or disconnection of the pipeline.


Our Repair Clamp with DI Lug is made from high-quality materials and is designed for long-lasting performance. The clamp body and lugs are made from ductile iron, which provides excellent strength and durability, and ensures that the clamp can withstand even the harshest operating conditions. The bolts and nuts used to secure the clamp are made from high-tensile steel, which ensures that they can withstand high levels of stress and tension.


The Repair Clamp with DI Lug is easy to install and can be fitted quickly and easily using a standard wrench. The design of the clamp ensures that the sealing gasket is held securely in place, which prevents leaks from occurring. The lug design also ensures a secure connection to the pipeline, which adds to the overall strength and stability of the repair.


Our Repair Clamp with DI Lug is available in a range of sizes to suit different pipe diameters, and can be used to repair leaks on both straight and curved sections of pipe. This versatility makes it an ideal solution for a wide range of industries, including municipal water and sewer systems, manufacturing plants, and oil and gas pipelines.


In summary, if you need a fast, easy, and cost-effective solution for repairing leaks on pipes made of ductile iron, our Repair Clamp with DI Lug is the product for you. With its high-quality materials, robust construction, and easy installation, it is the perfect choice for ensuring the long-lasting performance and reliability of your pipeline.


Products Specification

PressurePN6/PN10/PN16
TypeSingle band / double bands / triple bands
Body materialSS304/SS316
GasketsNBR or EPDM
CoatingRilsan(Nylon 11)
LugDuctile iron with FBE ( fusion bonded epoxy) coating
Bolts and NutsCarbon steel G4.8/G8.8 with galvanized zinc plated/hot dip, or SS304/SS316
PackageWooden cases and protection layer.


Application:

The production can be used widely in the instant repair of pipes in these fields: water supply and sewerage,gas transfer, chemical industry, metallurgic industry, mineral industry, water power, marine. The prodcut can be applied over and underground to the pipe of different materials, such as cast iron, steel, plastic, cement and so on.


Performance of Rubber Gasket:

MaterialApplicable RangeApplicable Temperature
EPDMwater, air, dust, water vapor-20℃~+ 140℃
NBRnatural gas, oil, petrol, other hydrocarbon-20℃~+ 100℃
